EPS series solenoid pump for commercial coffee machines

Coffee machine solenoid pump

EPS series solenoid pump for commercial coffee machines

A solenoid pump uses a magnetic field and current interaction, the current through the electromagnetic winding, the formation of an altering field, pushes the plunger to the overlying movement, generates pressure, and promotes fluid output.
  • Item No :

    EPS for Coffee Machine
  • Custom :

    Accept
  • MOQ :

    3000
  • Warranty :

    2 years
  • Port :

    Shenzhen
  • Lead time :

    35 days
  • Payment Terms :

    T/T, L/C
  • Samples Time :

    One Week
  • Certification :

    UL, CE, TUV, VDE, ISO9001, ISO14001

EPS Series Solenoid Pump for Commercial Coffee Machines



Technical Concept

An solenoid pump uses a magnetic field and current interation, the current through the eletromagnetic winding, the formation of an altering field, pushes the plunger to the overlying movement, generates pressure, and promotes fluid output.



Product Performance



Voltage 24-240 V/50-60 Hz Max. Pressure 1.2-4 Bar
Power 16 W Flow 30-350 ml/min
Ideal Fluid Pure Water Noise <50 dB
Room Temperature At 25℃ Life Over 500 hrs
Ambient Temperature 0-60℃ Dry Pumping Function Not Available
Working Mode continuous
Insulation Level Class H/F Installation Method Not Available
Integrate Diode R2000 2000V





Mechanical Assembly

It is easy and reliable to install the fixed terminal rubble cover at any position.

If fixed rubble positioning is used, noise can be reduced.

Quick mount type, 6.3×0.88mm terminals, enough for a tight and reliable connection.

The rubble cover seals the water inlet end and water outlet end to prevent any particles from entering the pump body.

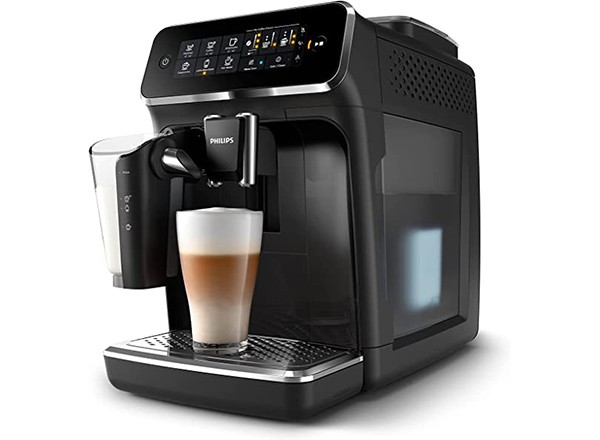

Typical Appliances

Coffee machines, steam cleaners, steam irons, garment steamer, steam vacuum cleaners, etc.



Performance Curve







Products Specification



Type Region Voltage/Frequency Region Voltage/Frequency
AC USA 120V 60Hz China 220V 50Hz
Europe 220-240V 50Hz Taiwan

110V 60Hz

Japan 110V 50/60Hz Korea 220V 60Hz





Voltage 24-240V/50-60Hz Max. Pressure 2.5~20Bar
Power 53W Flow Rate 500~2300 ml
Ideal Fluid Pure Water Noise <55dB
Room Temperature At 25℃ Service Life Over 500Hrs
Ambient Temperature 0~60℃

Dry Pumping Function

Installation Method

Not Available

Not Available

Working Mode ON/OFF=2/1(min)
Insulation Level Class H/F
Intergrate Diode R2000 2000V





Product Display











Company Promises



We consistantly adhere to meet the needs of customers and take customer's requirements as our core. Our heartfelt thanks for your every trust, support and accompany, etc. We are expecting more sincere communication and cooperation with you, everyone.



If you are interested in any of our products, please feel free to contact us. We are looking forward to forming successful busniess relations with new clients aroud the world in the near future.
