Large air flow tangential blower for cooler

GL45 Cooler Blower

Large air flow tangential blower for cooler

This type of fan has a large air volume and high air pressure. The products are widely used in electric appliances such as heating stoves and ventilators, etc. And can be customized according to customer requirements. The cross-flow blower: The air enters the wind wheel in the radial direction and the air out in the same direction. The air is subjected to two forces in the wind wheel.
  • Item No :

    Tangential Blower 60 Series
  • Custom :

    Accept
  • MOQ :

    3000
  • Warranty :

    2 years
  • Port :

    Shenzhen
  • Lead time :

    35 days
  • Payment Terms :

    T/T, L/C
  • Samples Time :

    One week
  • Certification :

    UL, CE, TUV, VDE, ISO9001, ISO14001

large Air Flow Tangential Blower for Cooler



Performance Data

Model: GL45

Voltage/Frequency No Load On Load

Speed

(RPM)

Current

(A)

Power

(W)

Torque

(mN.m)

Speed

(RPM)

Current

(A)

Power

(W)

Starting Torque

(mN.m)

Max. Torque

(mN.m)

120V/60Hz 2900 0.24 14.5 5.8 1850 0.25 16 7.1 7.5





Technical Data

voltage: 100~240V

Frequency: 50/60Hz

Insulation Calss: A/E/B/F/H

Life: 10 years (if necessary, can be designed to reach 20 years)

Fan wheel diameter: 60mm

Length: 120~360mm

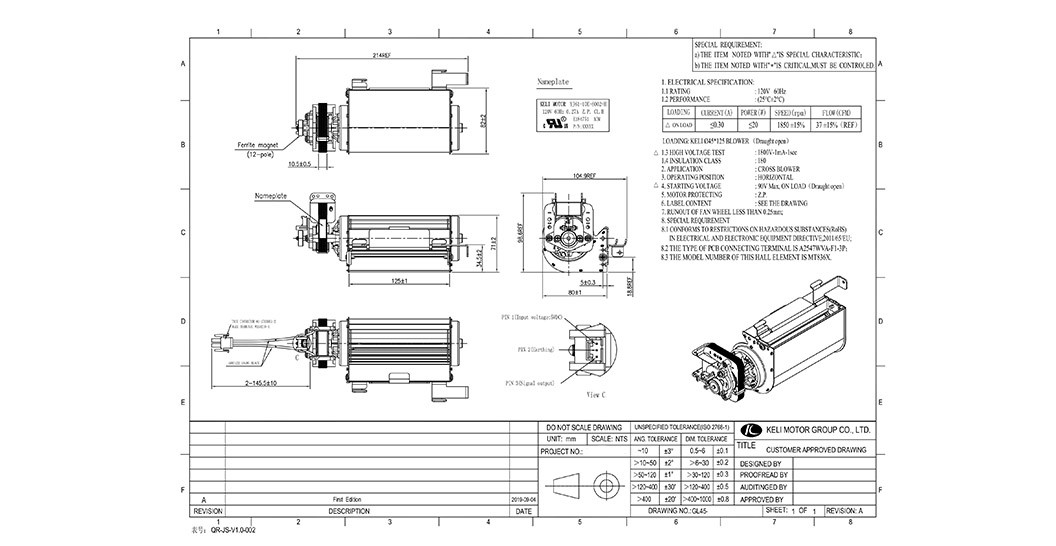

Dimensions











Torque Curve









Technical Parameters



Model Dimensions
L1 L2 L3 L4 L5 D1 D2 D3
GL45×125 10.5~25.5 / / 3.4 or 5.0 125 / / 2.3 or 3.2
GL45×160 10.5~25.5 110 84.6 3.4 or 5.0 162 3.2 3.2 2.3 or 3.2
GL45×180 10.5~25.5 154 138 3.4 or 5.0 180 2.8 or 3.5 3.0 or 3.5 2.3 or 3.2
181
182
188
GL45×240 10.5~25.5 183.7 154 3.4 or 5.0 242 2.8 or 3.5 3.0 or 3.5 2.3 or 3.2





Division Introduction

  Established in 1992, Keli motor has become one of the largest micro R&D, manufacturer and exporter in China, it's No.1 in the sales and production capacity of shaded pole motor. The company has been listed in Shenzhen Stock Exchange Market since Augest 17th, with Stock Code 002892.
