Item No :
DPI-1 for Hot Water KettleCustom :
AcceptMOQ :
3000Warranty :
2 yearsPort :
ShenzhenLead time :
35 daysPayment Terms :
T/T, L/CSamples Time :
One WeekCertification :
UL, CE, TUV, VDE, ISO9001, ISO14001Miniature Pump for Hot Water kettle
Technical Concept
The pump, is a micro pump with a working voltage below 37V(common voltage 3V, 4.5V, 6V, 9V,12V, 13.8V,24V,36V) and power less than 15W; According to the customer's specifications and choose a DC pump, with the size and strcture of each series, form all levels of efficiency, design a number of product series.
The diaphragm pump has DPW, DPA, DPA-S, DPV, DPA/W-F, DPW-F series. The motor of each series will be matched with the corresponding water inlet and outlet pipe(upper cover) into a variety of models, and the pressure/flow parameters will be designed according to the standard parts or customers requirements, and composed of codes.
Product Specification
Model: DPI-1
Series: 01
Flow: 2L/min
Lift: 70 cm
Cycle: ED100%
Model | DPI-1 | Power(W) | 3W |
Ambient temperature | 5~98℃ | Lift(CM) | ≥70 |
Working way | ED100% | 0 Bar Flow(g/min) | ≥3000 |
Class | F | Meterial grade | FDA RoHS |
0Bar Flow(g/min): ≥2000
Ambient Temperature: 5~98℃
Pumping Noise(dB): ≤55(30cm)
Service Life: ≥300h
Working Way: ED100%
Class: F
Typical Appliances
Hot Water Ketter, Drainage Facilities, etc.

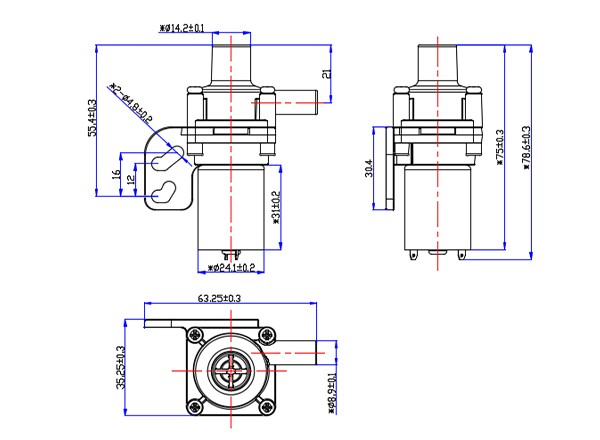

Outline Drawing Ref.
Torque Curve
